4Sight™ 4-in-1 ophthalmic measurement device
4Sight™ 4-in-1 ophthalmic measurement device

4Sight™ 4-in-1 ultrasound platform

Find a distributor

Portable ultrasound screening, tailored for you

When time is precious, switching between multiple instruments is inconvenient and increases chair time. Which is where the Keeler 4Sight™ platform – our all-in-one ultrasound system steps in.

Bringing years of technology and industry knowledge together we have created a single solution for ophthalmic diagnostics, combining A-scan, B-scan, UBM and pachymetry functionality in one, easy-to-use format.

The easy-to-set-up, modular platform allows tailoring to suit your specific needs, while its proprietary software delivers an intuitive user interface and easy data transfer between modalities, meaning more time with your patients and less with the manual.

Benefits:

  • Flexibility and convenience – all-in-one solution for all ophthalmic ultrasound imaging
  • Industry leading clinical accuracy
  • Unsurpassed image quality
  • Ergonomic, lightweight and portable
  • User friendly
  • Competitive warranty and great customer support
  • Great value

This product is suitable for use by veterinarians. View our full range of veterinary instruments.

Currently using Keeler or Accutome ultrasound? We need your help!
If you’re currently using 4Sight, and/or A-Scan, B-Scan, and UBM devices, please click here to complete this short survey. And if you have colleagues that do, please encourage them to provide their feedback too.
It is a mandatory requirement for us to source feedback from device-users, to maintain certification and compliance. This survey is being run by an independent Medical Device Regulations authority and your response will remain confidential.
Thank you very much in advance for your valued input.



SKU: 24-8000 / 24-8000V Category:
Download brochure

Software:

If you’re a Keeler distributor partner looking for our latest software download links, please visit the Keeler Partner hub software section. If you’re an existing Keeler or Accutome Keeler ultrasound device user looking for the latest software release, please contact your local Keeler rep, who will be happy to help.

Accessories included:

  • Wireless mouse
  • Wireless keyboard
  • Probe holders (on the back of the unit)
  • Power supply
  • A-Scan immersion shell
  • Manual
  • Quick reference guide
  • Test blocks (A-Scan and Pachymeter)

Four-in-one solution

All your ultrasound needs in one device, the 4Sight™ system includes A-Scan, B-Scan, UBM and Pachymetry functionality. Delivering industry leading clinical accuracy and unsurpassed image quality with proprietary signal processing, it’s truly a single solution for all ophthalmic ultrasound screening and measurements, all within a compact and portable table top device.

Ergonomic, lightweight and portable

Weighing only 5lbs, the 4Sight™ device is lightweight and portable, designed to fit comfortably in your hand; its compact form also saves you valuable desktop space.

User friendly

The 4Sight™ boasts a modular platform designed to allow combinations specific to your needs for ultimate flexibility. While the intuitive interface ensures a smooth learning curve, its easy modality data transfer means shorter exam times. It’s even DICOM℠ Worklist compatible.

Control meets flexibility

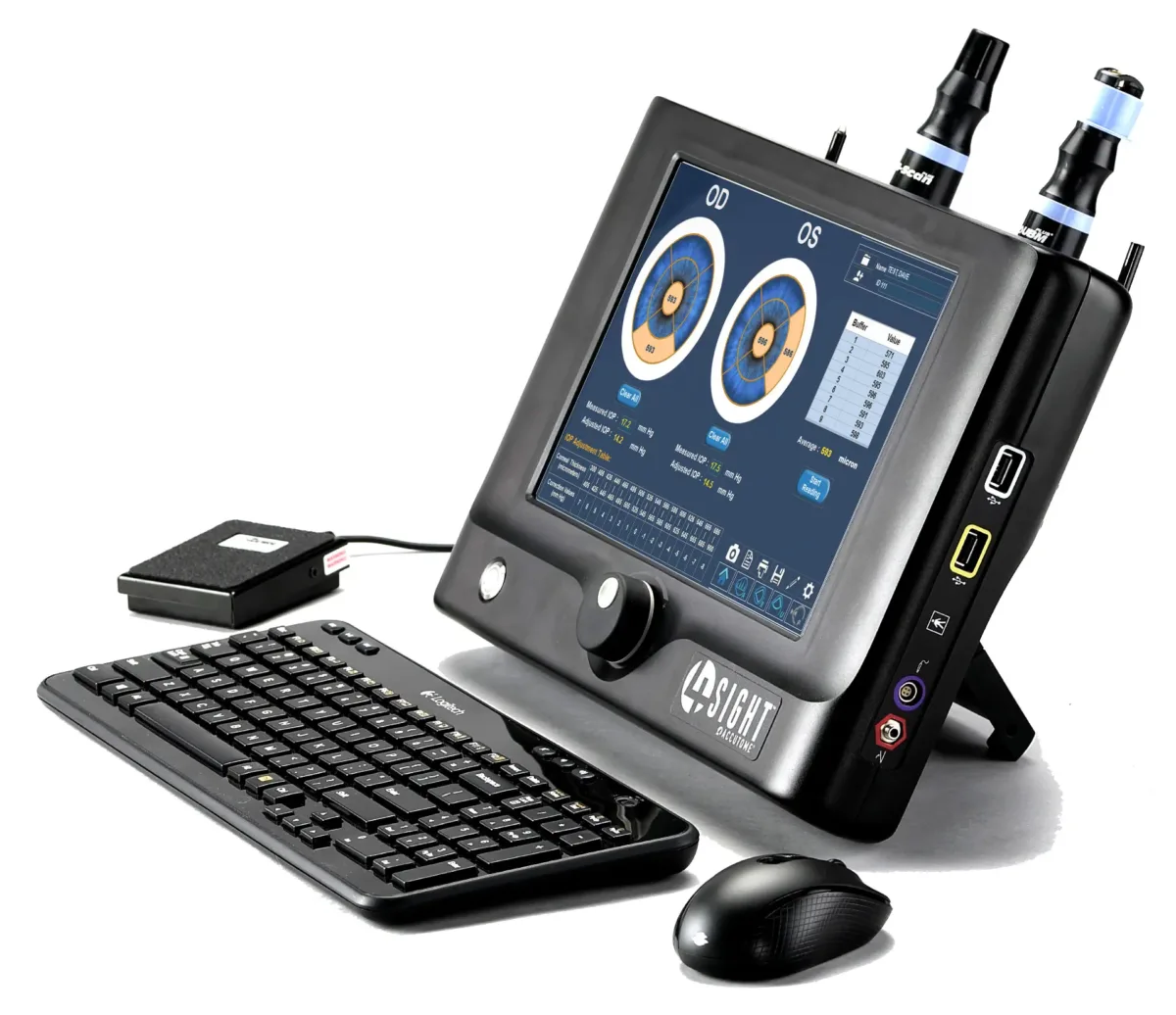

The 4Sight™ control unit features a 12.1 inch touch screen and houses all probe connections. Designed with easy set-up, use and practice integration in mind, the control unit is supplied with colour-coded probe connectors with multiple additional connections for the footswitch and probe holders. Complemented with three further USB ports, an HDMI output and ethernet connection plus the ability to connect to your printer and existing network.

Support when you need it

True partnerships don’t stop, our industry-leading warranty and service programs offer dependable support for the life of the product.

Extensive scanning

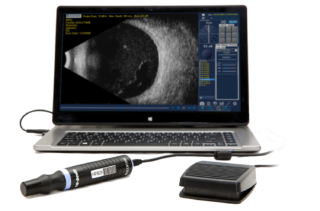

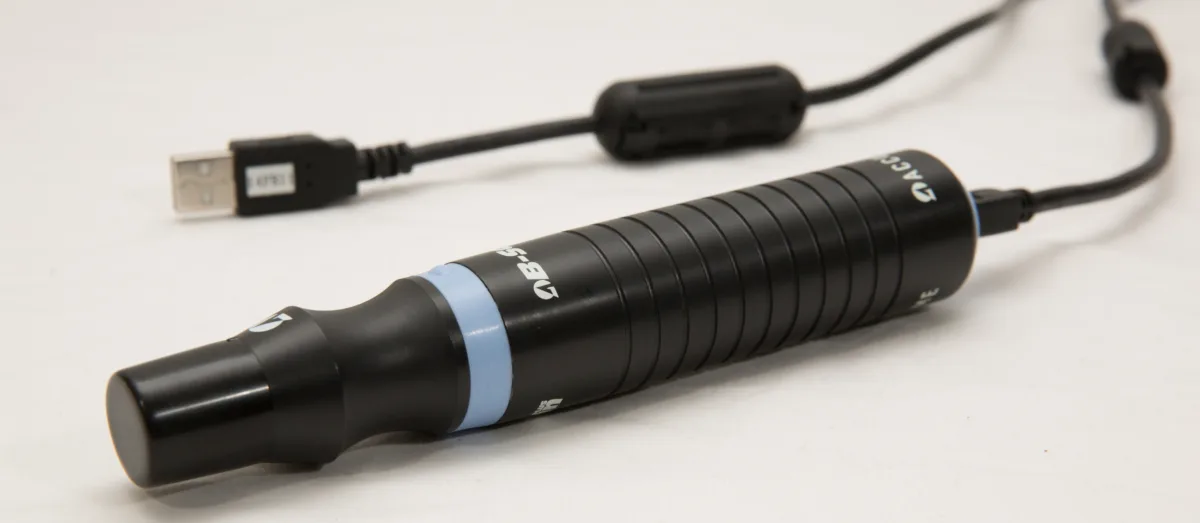

The B-scan probe works on a dual frequency (12 or 15 MHz) and compiles a series of 256 A-scans over a 60º sweep angle, providing you with a comprehensive range of images and videos.

State of the art features

Conveniently included in the B-scan software are 12 measuring callipers, scan labelling tools, screen-shot capture, auto-print and reporting functions for data export, to ensure you have everything you need all in one place.

For all documentation associated with this product including cleaning instructions, product support and instruction manuals, please visit our support page here
